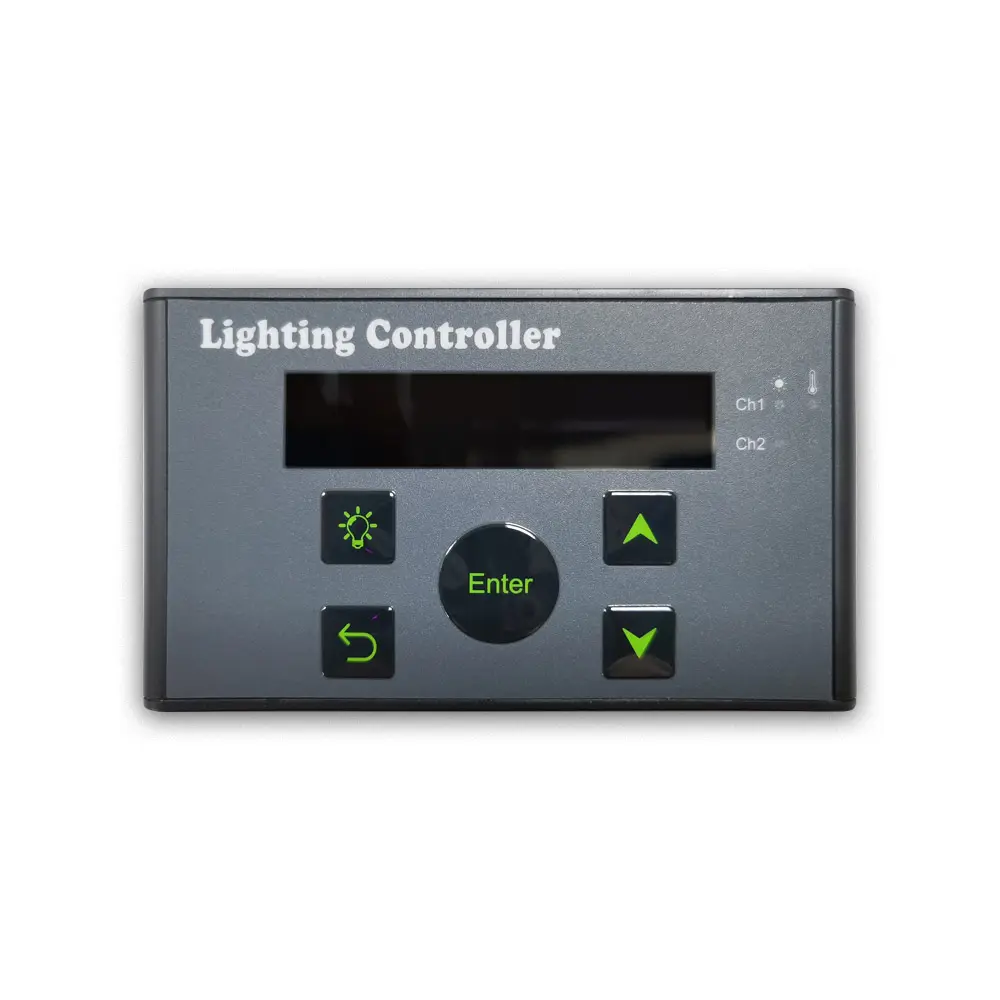

LIGHT CONTROLLER 2 CHANNELS
This Light Controller is a dual channel. Each of the controller's two channels can control up to 40 fixtures or ballast . It is possible to use those channels to control fixtures in two completely independent rooms, or to control up to 80 fixtures in one room.
With an External Contact Module (ECM) auxiliary equipment can be controlled. Upto two ECMs can be connected. An alarm can be connected go off at temperature shutdown or power outage. ( Sold Separately)
TECHNICAL SPECIFICATIONS:
| Controller dimensions (LxWxH) |
4.33 x 2.55 x 0.82 in. / 110 x 21 x 65 mm. |
| Weight |
|
| Power supply |
Adapter: 100v-240V AC 50/60Hz
15DC (1000mA)
|
| Maximum control voltage |
11.5V |
| Maximum voltage/ current alarm contacts (NO/NC) |
13.5V/50mA |
| Maximum cable length per port |
328ft/ 100m.
820 ft/250m.
|
| Maximum number of ballast per port |
40 250* |
| Total number of ballasts per controller |
80 500* |
| |
*When using a repeater bus fixture or ballast |
| INCLUDED IN THE BOX: |
|
| Product details |
|
| Company: |
Innovative Tool and Design, Inc. |
| Part number: |
INNO-LGTCTRL2 |
| UPC: |
850031592568 |
| Color: |
Light gray |
| Package size: |
3.54 x 5.11 x 9.84 in. |
| Package weight: |
1.61 Lbs. |
