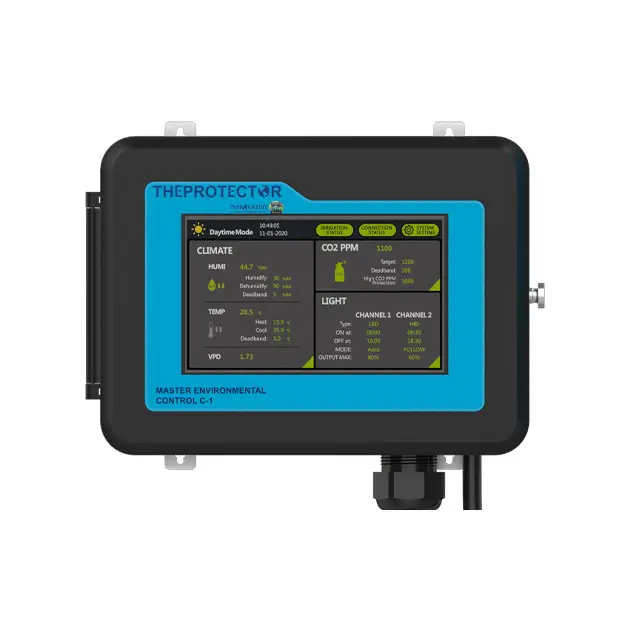

Master Environmental Control C-1

Manufacturer: Innovative
SKU: INNO-MASTERC-1
$1,540.00
The host it's equipped with a 7-inch touch screen for convenient operation and comprehensive display, at the same time can serially connect multiple sensors and multiple actuators at the same time, Collect various sensors signals through RS485 communication, and send control signals to each execution. PATENT PENDING.
Also available on: Ebay
+ -
Master Environmental Control C-1



Description:

  • Convenient and efficient management of various environmental parameters in the same greenhouse.
SPECIFICATIONS:
INPUT VOLTAGE

120VAC+- 15VAC,      60Hz, 1A (Can be customized)

220VAC+- 15VAC, 50/60Hz, 1A (Can be customized)

AC SIGNAL OUTPUT (PORT)10- Channel signal  Output: AC24V/0. 1A
OTHER SIGNAL OUTPUT PORTS (RJ12)

RJ12 x 4, 4-Channel RS485 communication

Signal line output: DC24V, 1.0A

NETWORK PORTRJ45
DIMENSIONS14" H x 17" W x 4"D ( excluding length of power cable)
POWER CORD LENGTH2m / 6.5 Ft.
NET WEIGHT  9.5 Lbs / 4.30 Kgs
GROSS WEIGHT10.5 Lbs /  4.76 Kgs
PACKAGE SIZE24.4x 24.4x 34.3 in / 620x620x870mm
ACCESSORIES

Self-tapping screws x4

Ring Expansion Screws x4

Temperature and humidity sensor probe x1

AC Station module x1

RJ12 network extension connector x1

RS485 communication extension cable 5.0m x1





INCLUDED IN THE BOX:





 CO2 HUMIDITY & TEMP SENSOR  HUMIDITY & TEMP SENSOR
 GAS DETECTEDCO2  WORKING COLTAGEDC24V
 WORKING VOLTAGEDC24V WORKING CURRENT <10mA
 WORKING CURRENT 30mA HUMIDITY RANGE 0-100%RH
 CO2 RANGE 0-6000ppm HUMIDITY ACCURACY +-2%RH
 CO2 ACCURACY +-(30ppm+3%) TEMPERATURE RANGE 0-70*C
 HUMIDITY RANGE 0-100%RH TEMPERATURE ACCURACY +-0.5*C
 HUMIDITY ACCURACY +-2%RH MAXIMUM QUANTITY 4 pcs per set
 TEMPERATURE RANGE 0-70 *C COMMUNICATION MODE RS485 (Modbus-RTU)
 TEMPERATURE ACCURACY      +-0.5*C LIGHT SENSOR Photocell
MAXIMUM QUANTITY 4 pcs per unit
COMMUNICATION MODE                        RS485 (Modbus-RTU)
LIGHT SENSORPhotocell
AC STATION SOCKED MODULE LIGHT CONTROL MODULE
 INPUT VOLTAGE AC110V 60Hz INPUT VOLTAGEDC24V
 OUPTUT VOLTAGE AC110V / 60Hz / MAX 10 OUTPUT VOLTAGE 0-10V(DC)
 MAXIMUM POWER <1100W COMMUNICATION TERMINAL  RJ12 connector
 COMMUNICATION TERMINAL RJ12 connector INDICATOR Green LED
 INDICATOR Green LED MAX. connections per channel 20 pcs.
 MAX. CONNECTIONS QUANTITY 32 Pcs. COMMUNICATION MODE RS485 (Modbus-RTU)
 COMMUNICATION MODE RS485 (Modbus-RTU)

 CONNECTION GUIDE


Basic configuration in the standard working environment with a grow area of 200m3

EquipmentQuantity  Purpose

Master Environmental    Control C-1

 1Master Controller
 CO2 4 in 1 sensor 1Monitoring CO2 parameters (Relative CO2 concentration value), relative temperature value, realtive humidity value, and light parameters.

Temperature, humidity and light 3 in 1 sensor

 1Monitoring the relative temperature value, realtive humidity value, and light parameters
 AC STATION module 1Used to control de CO2 output device (TANK or generator)
 LDA-1 light control module 2Used to control the main light line and auxiliary light line
 RS485 cable SeveralExtension lines for connecting each terminal



NOTE:

Before installing the equipment, the user needs to consider the number of sensors and related devices that need to be equipped based on the actual conditions of the planting area, for the heavy current (110V-380V) devices in the circuits should be installed in the distribution box first.



  1. Connect the sensor module to the Sensor port in series.
       2. Connect the AC Station socket module to the Device port in series.
       3. Connect the LDA-1 light control module to the LINE-1 port, which represents the main light control line.
       4. Connect the LDA-1 light control module to the LINE-2, which represents the auxiliary light control line

       5. Connect the internal 10- channel port to the corresponding configuration in the distribution box or related                            equipment that supports AC24V signals.

       6. Before the connection, it is necessary to check if the positive and negative poles of the output line are correct.
       7. After circuit connection is completed, plug in the power and turn on the device.

 THEPROTECTOR

Package:

1 pcs / pack

Individual Size:

in.

Individual Weight:

 lbs.

Product Details:
Company Name:Innovative Tool and Design Inc.
Product Description: Master Environmental Control C-1
Part Number:               INNO-MASTERC-1
UPC 850031592216
Quality Certification:
Color:White and blue
Package Size: 24.4 x 24.4 x 34.3in.
Weight: 10.5 Lbs.
Manual Click Here (11MB)
*
*
*
*
