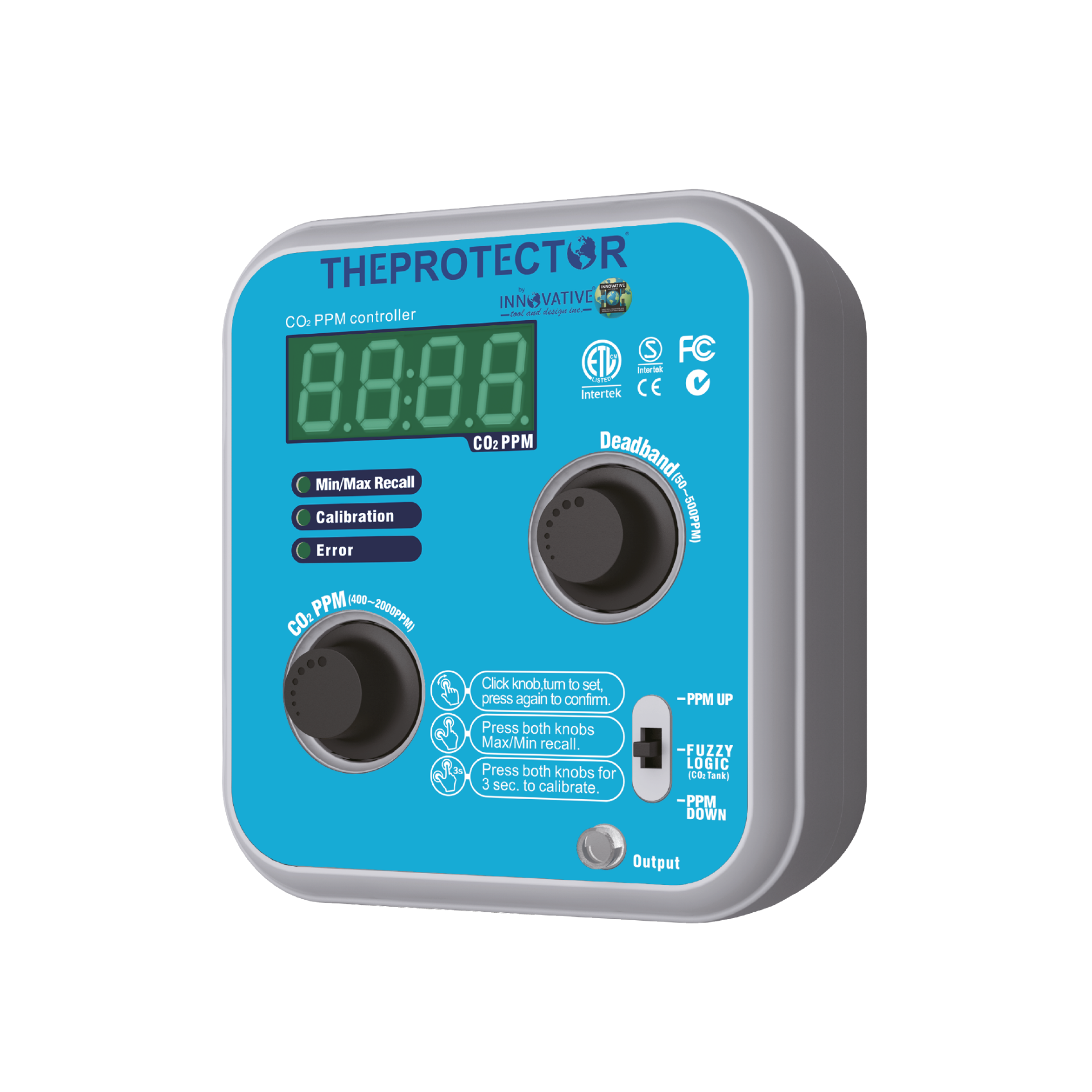

CO2 PPM CONTROLLER
Utilizing the built in photocell feature this controller limits Co2 production to the light hours to maximize savings and increase yields.
Featuring three control modes:
- PPM UP for Co2 generator use
- FUZZY LOGIC for superior accuracy, when utilizing a tank and regulator setup
- PPM DOWN if desired, ETL, CE and FCC approved for safety and dependability
SPECIFICATIONS | |
Max Amp | 14.5 amps @ 120 VAC / 60Hz |
Sensor Cord Lenght | 15 ft / 4.5 m |
Co2 Control Range (PPM) | 400-5000 |
Co2 Accuracy (PPM) | +/-50 |
Weight | 2.1 Lbs / 1 kg |
Dimensions | 5.07x4.68x1.95 in / 130x120x50 mm |
Indoor use only | |
Altitude | for up to 6500 ft/ 2000 m |
Operating Temperature Range | 40-105*F / 4-40*C |
Maximum Relative Humidity | 80% |
IP Rating | IP20 |
FACTORY SETTINGS | |
Co2 PPM Set Point | 1000 PPM |
Co2 Deadband Set Point | 50 PPM |
Co2 Calibration Set Point | 400 PPM |
Co2 Mode | PPM UP |

Accessories included
Wall/TentMounting
Hardware
Sold separately
24V Power Adapter
Warnings
- Follow the directions for instalation
- Save instructions
- Heed all warnings
- The output voltages of this controllers receptacles are the same as the input voltage
- Do Not use this controller near a water source.
- Do Not attempt repair.
- Stop using product, if any sign of damage on power cable insulation.
- Do Not block any ventilation openings.
- This product is a Safety Class I Controller
Product Details | |
Company name: | Innovative Tool and Design, Inc. |
Part number: | INNO-CO2CTRLR |
UPC: | 850031592575 |
Color: | Blue and gray |
Package size: | 11.41x7.16x6.02 in. |
Package weight: | 2.20 Lbs. |
